Single Axis SE12 Slew Drive with IP66 enclosed housing For Solar Tracking tracking system

  • 1
  • 2

Brand Name : HangTuo

Model Number : SE1~SE25

Certification : CE, ISO9001

Place of Origin : Changzhou, China

MOQ : 1 piece

Price : USD 280~504 / pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

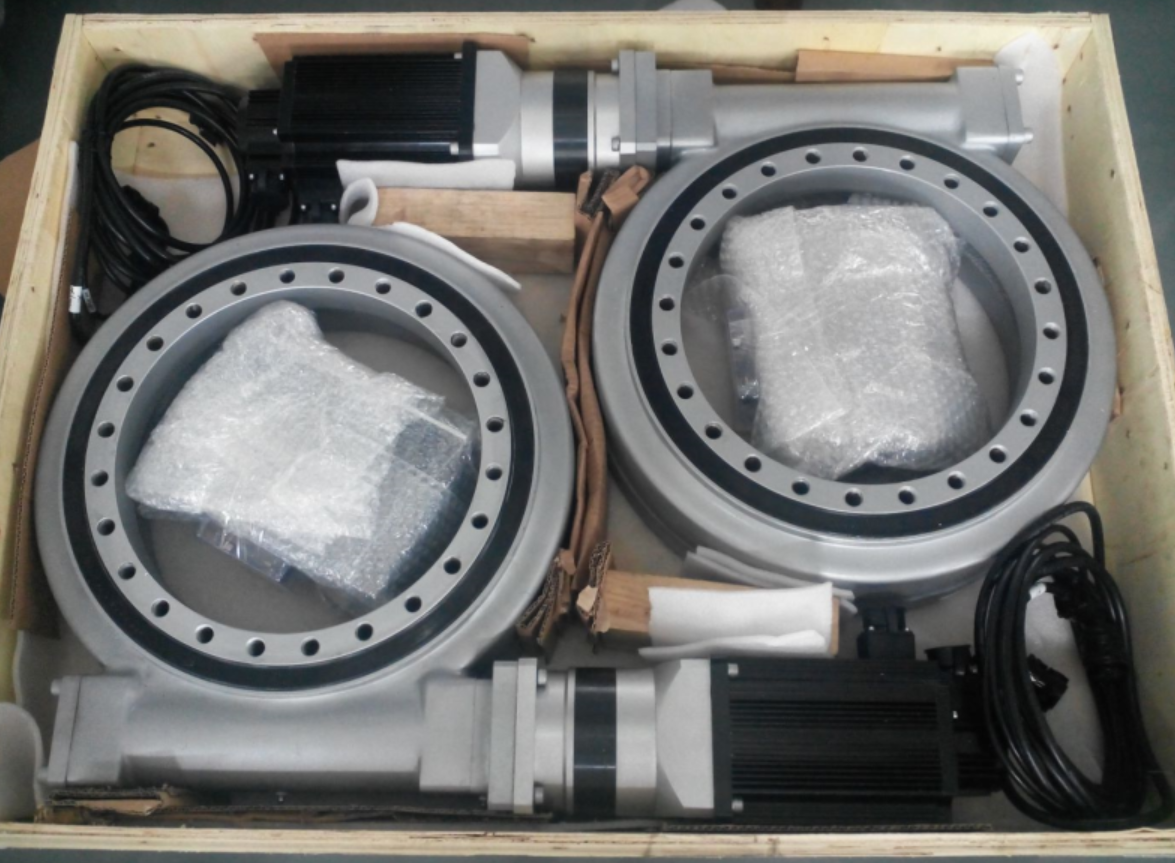

Packaging Details : plywood box

Model : SE1~SE25

Gear ratio : 31:1~150:1

Application : solar trackers

Driver : 24VDC Gear Motor

Certificate : ISO9001 / CE

Feature : Single Axis

Maintenance : Free

Color : As requested

Backlash : 0.1 degree

Contact Now

Single Axis SE1 - SE25 Solar Tracker Slew Drive With 24VDC Gear Motor For Solar Tracking System

Description

Slewing ring, also known as slewing bearings or turntable bearing, is a large bearing which is able to sustain the more axial load, radial load and tilting moment. It is known as: “machine joints”, the essential machinery transmission parts, between the two objects that need to be relative rotary motion. It has the inner and outer ring, rolling and other components.

Single Axis SE12 Slew Drive with IP66 enclosed housing For Solar Tracking tracking system

One can consider the slewing drive as a gearbox because the core motion components are the slewing bearing and worm shaft. It also consists of auxiliary components such as seals, housing, and motor. As a power source, slew motor is usually DC planetary gear motor or AC gear motor. AC hydraulic motor is mainly used in the construction machinery as a power drive system. As the core component is slewing ring drive, slewing gearbox can readily withstand the axial and radial forces. The slew drive working principle: The worm is driven by the motor, which drives the outer ring of the slewing ring to rotate; The outer ring output the torque through the flange and the inner ring of the slewing ring is fixed in the housing.

Slewing drive has reverse self-locking because of worm gear drive with reverse self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.

Slewing Drive Advantages

1. Hourglass worm technology provides more tooth contact, higher torque
2. Provide an economical and compact solution with low maintenance costs
3. Slewing gear and raceway harden processing technology increase the slew drive lifetime
4. All slewing mechanism components are rigorously tested and have good quality assurance
5. Custom design is available

Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182

Slewing Drive Application

Slewing drive is a perfect motion control product for the application which requires rotational torque strength.

Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available. Power Jack Motion slewing drive for solar tracking system application include solar Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker


For wind generators: Slewing drives are used to rotate the pedestal in wind turbines
Slewing Drive for Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, Dock Crane, Timber Grab


For Industry Market: Automation/Assembly line, robotic arm


For Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
